1.8T 20V High Boost ARP Head stud kit (11mm Diameter)

R 8,495.00
Unit price per

Shipping calculated at checkout.

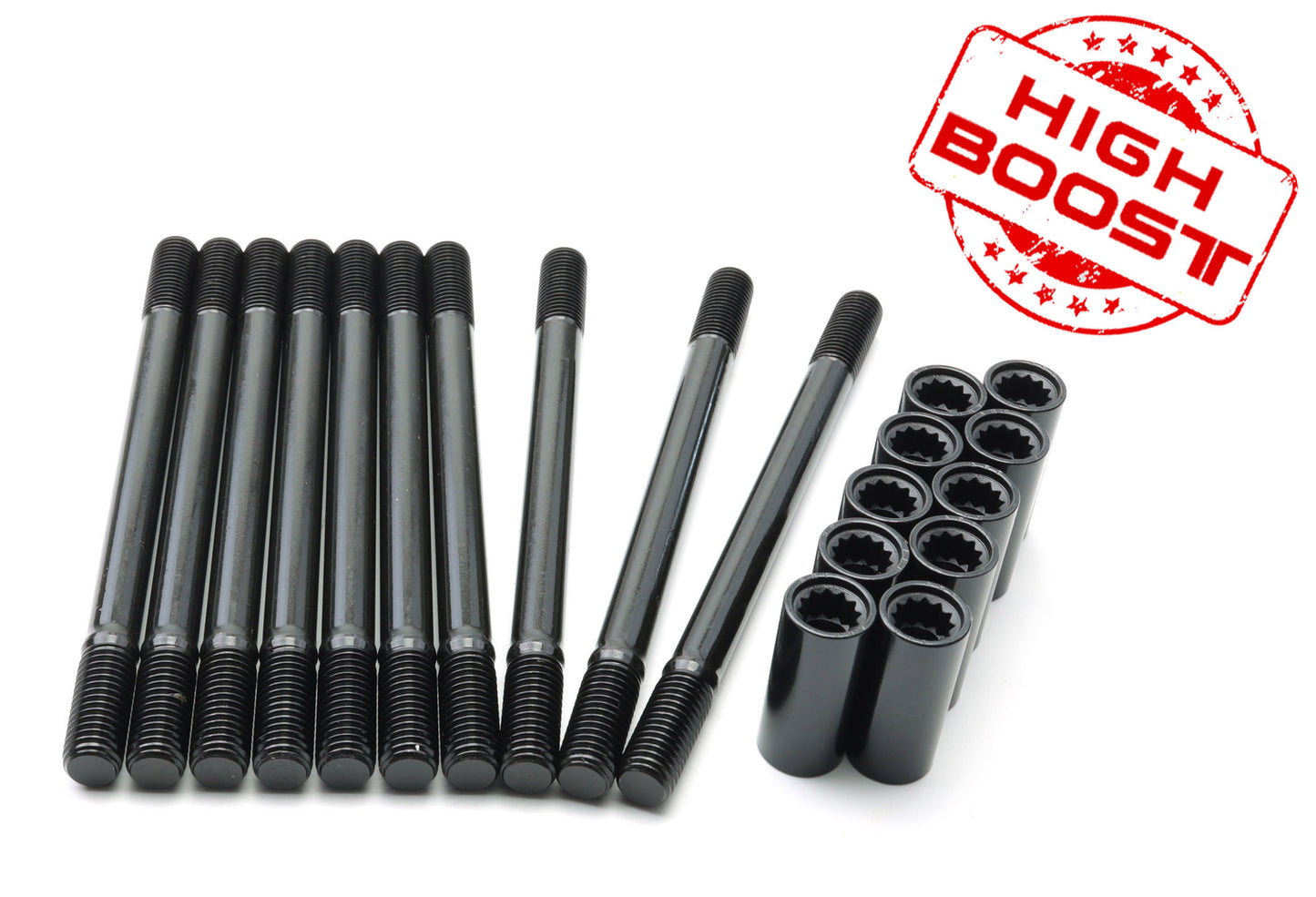

High Boost ARP Studs Cylinder Head Kit for all 1.8T 20V.

A MUST for all engines that drive with increased boost pressure!
ARP is the market leader in this field.
The studs are made of 8740 chromoly steel and have rounded threads.
Up to 30% stronger stretch steel than standard bolts.

All ARP high performance bolt kits incl. bag Moly Paste.

Attention: HIGH BOOST Version for maximum boost and pressure. The thread in the block has to be cut from 10mm to 11mm. Then these studs are 11mm in diameter and can withstand higher forces.

Please note the version (engine code).

Don't fit to AEB engines

Torque in 3 stages with sufficient ARP paste. Last stage 110 Nm.

Fitment For:

Audi A3 / S3 / RS3 8L | BJ 1996-2003 1.8T AGU | 150 PS
Audi A3 / S3 / RS3 8L | BJ 1996-2003 1.8T AJQ | 180 PS
Audi A3 / S3 / RS3 8L | BJ 1996-2003 1.8T AMK | 210 PS
Audi A3 / S3 / RS3 8L | BJ 1996-2003 1.8T APP | 180 PS
Audi A3 / S3 / RS3 8L | BJ 1996-2003 1.8T APY | 210 PS
Audi A3 / S3 / RS3 8L | BJ 1996-2003 1.8T AQA | 150 PS
Audi A3 / S3 / RS3 8L | BJ 1996-2003 1.8T ARX | 150 PS
Audi A3 / S3 / RS3 8L | BJ 1996-2003 1.8T ARY | 180 PS
Audi A3 / S3 / RS3 8L | BJ 1996-2003 1.8T ARZ | 150 PS
Audi A3 / S3 / RS3 8L | BJ 1996-2003 1.8T AUL | 210 PS
Audi A3 / S3 / RS3 8L | BJ 1996-2003 1.8T AUM | 150 PS
Audi A3 / S3 / RS3 8L | BJ 1996-2003 1.8T AUQ | 180 PS
Audi A3 / S3 / RS3 8L | BJ 1996-2003 1.8T BAM | 225 PS
Audi TT / TTS / TT RS 8N | BJ 1998-2006 1.8T AJQ | 180 PS
Audi TT / TTS / TT RS 8N | BJ 1998-2006 1.8T APP | 180 PS
Audi TT / TTS / TT RS 8N | BJ 1998-2006 1.8T APX | 224 PS
Audi TT / TTS / TT RS 8N | BJ 1998-2006 1.8T ARY | 180 PS
Audi TT / TTS / TT RS 8N | BJ 1998-2006 1.8T AUM | 150 PS
Audi TT / TTS / TT RS 8N | BJ 1998-2006 1.8T AUQ | 180 PS
Audi TT / TTS / TT RS 8N | BJ 1998-2006 1.8T BAM | 224 PS
Audi TT / TTS / TT RS 8N | BJ 1998-2006 1.8T BEA | 224 PS
Audi TT / TTS / TT RS 8N | BJ 1998-2006 1.8T BFV | 240 PS
Audi TT / TTS / TT RS 8N | BJ 1998-2006 1.8T BVP | 163 PS
Audi TT / TTS / TT RS 8N | BJ 1998-2006 1.8T BVR | 190 PS
Seat Ibiza II (6K / 6K GP01) | BJ 1993-2002 1.8T 20V AQX | 156 PS
Seat Ibiza II (6K / 6K GP01) | BJ 1993-2002 1.8T 20V AYP | 156 PS
Seat Ibiza II (6K / 6K GP01) | BJ 1993-2002 1.8T 20V AYP | 180 PS
Seat Ibiza III (6L) | BJ 2002-2008 1.8T 20V BBU | 180 PS
Seat Ibiza III (6L) | BJ 2002-2008 1.8T 20V BJX | 150 PS
Seat Ibiza III (6L) | BJ 2002-2008 1.8T 20V BKV | 150 PS
VW Golf IV (Typ 1J) | BJ 1997-2003 1.8T 20V AGU | 150 PS
VW Golf IV (Typ 1J) | BJ 1997-2003 1.8T 20V ARZ | 150 PS
VW Golf IV (Typ 1J) | BJ 1997-2003 1.8T 20V AUM | 150 PS
VW Golf IV (Typ 1J) | BJ 1997-2003 1.8T 20V AUQ | 180 PS

Ships in 7-12 days. Special Order item on back order only.
