2.0L TSI EA888 Gen.3 MQB Forged Piston & Steel Connecting Rod High Boost Kit JE & BAR-TEK®
This kit is made for you if you are serious about performance. Our ULTIMATE Kit includes everything you need to make you and your engine happy: Power up to 1000 HP with your 2.0L TSI engine!
Perfectly Tuned: 2.0L TSI ULTIMATE Kit for up to 1000 HP Performance

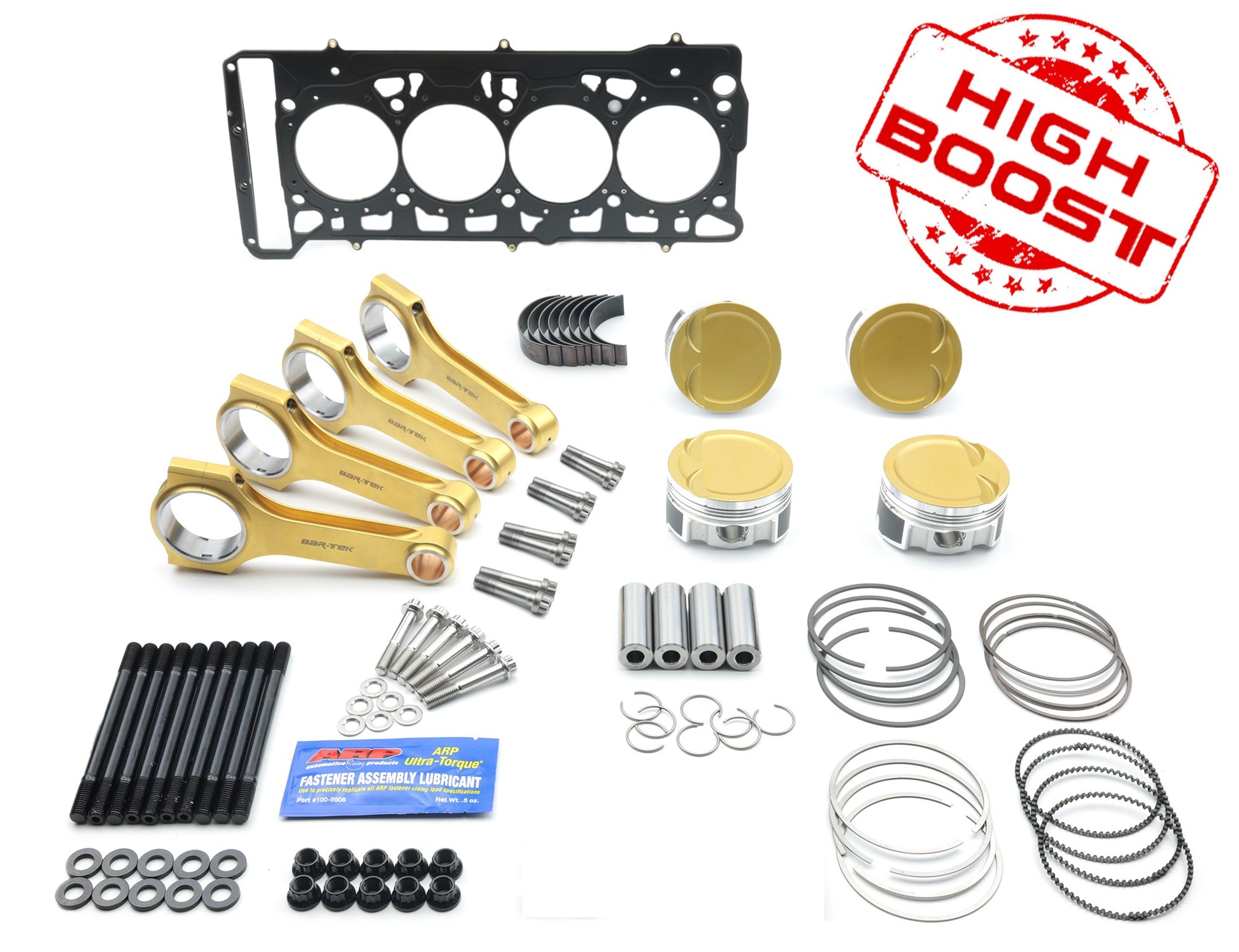

Whenever you think more is not possible, think of this kit. Because here we've outdone ourselves once again. The ULTIMATE Kit is not called that for nothing! Here you have everything you need for the best performance with your 2.0L TSI: A perfectly matched combination of forged pistons, connecting rods, connecting rod screws, connecting rod bearings, head gasket and stud bolt.
Visually alone, this set can do it all: our BAR-TEK® H-Shaft steel connecting rods are titanium riveted, which is why they shine gold. Matching high performance pistons from JE Pistons are available as Ultra Series. All the other parts are top quality as well: ARP connecting rod bolts, connecting rod bearings from ACL, MLS head gasket from Cometic and ARP stud bolt for head.
That's really all you need. Not only do these components work in perfect harmony with each other, but the kit also saves you money compared to buying them individually!
Extreme kit for extreme performance
Our kit is not only an eye-catcher, it is also designed for extreme performance. With this kit you can reach up to 1000 hp with your 2.0L TSI! That's because we only put the best components in our Ultimate Kit and they are perfectly matched to each other.
The JE Pistons-piston in this kit are extra coated for extreme performance and come with the high boost piston pins. At the same time they are still pretty light. This combo is of course perfect for motorsports. With the piston comes everything you need for the installation: bolts, rings and clips.
Also extremely light and at the same time very stable are our special titanium-nitrided steel connecting rods. Thanks to their surface, they can withstand high pressure loads without any problems. They are milled from the solid and have an additional bore for better piston pin lubrication (Rifle Drilled). They also come with everything you need for installation: the matching ARP2000 expansion bolts and installation paste.
These two parts are the stars in the kit and are rounded out by high performance bolts, racing lead bearings and such. As said, more simply does not go!
Features of the high performance piston:
- Extremely light due to special alloy
- Reinforced for maximum performance
- Also for standard bore 82,50 mm
- 21 mm piston pin
- For 2.0L TSI with engine type EA888 of the third generation
- Installation and drilling dimensions enclosed
Features of titanium nitrided H-Shaft-conrod:
- Titanium-nitrided
- high strength milled from the solid
- suitable for extreme power increases of 1000 HP
- extremely light and very stable
- Magnaflux inspected
- 4 pieces per set
- Dimensions: 144 x 21 mm
- Weight per conrod with screws only about 600 grams
- With oil riser hole for piston pin lubrication (Rifle Drilled)
- precisely angled and tested in our factory
- WITH ARP 2000 expansion screws 3/8"
Features of the ACL connecting rod bearings:
- Racing bearing, ACL Race
- extra coated
- extra bore for the piston pin
Features of APR stud bolt for head:
- A MUST for all engines that run with increased charge pressure!
- The most important bolts from the world market leader ARP.
- The stud bolt are made from 8740 Chromoly steel and have rounded threads.
- Up to 40% stronger stretch steel than stock bolts.
- All ARP high performance bolt kits include ARP paste.
- Additional ARP bolts for the bearing blocks
Features of the Cometic MLS head gasket
- Multi-layer metal head gasket
- Stock thickness for optimum compression ratio of 9.5:1
Fitment for all 2.0L TSI EA888 engines with chain as installed in Golf 7, Audi TT, Audi A3, Leon Cupra and many other 2.0L TSI engines of the third generation.
