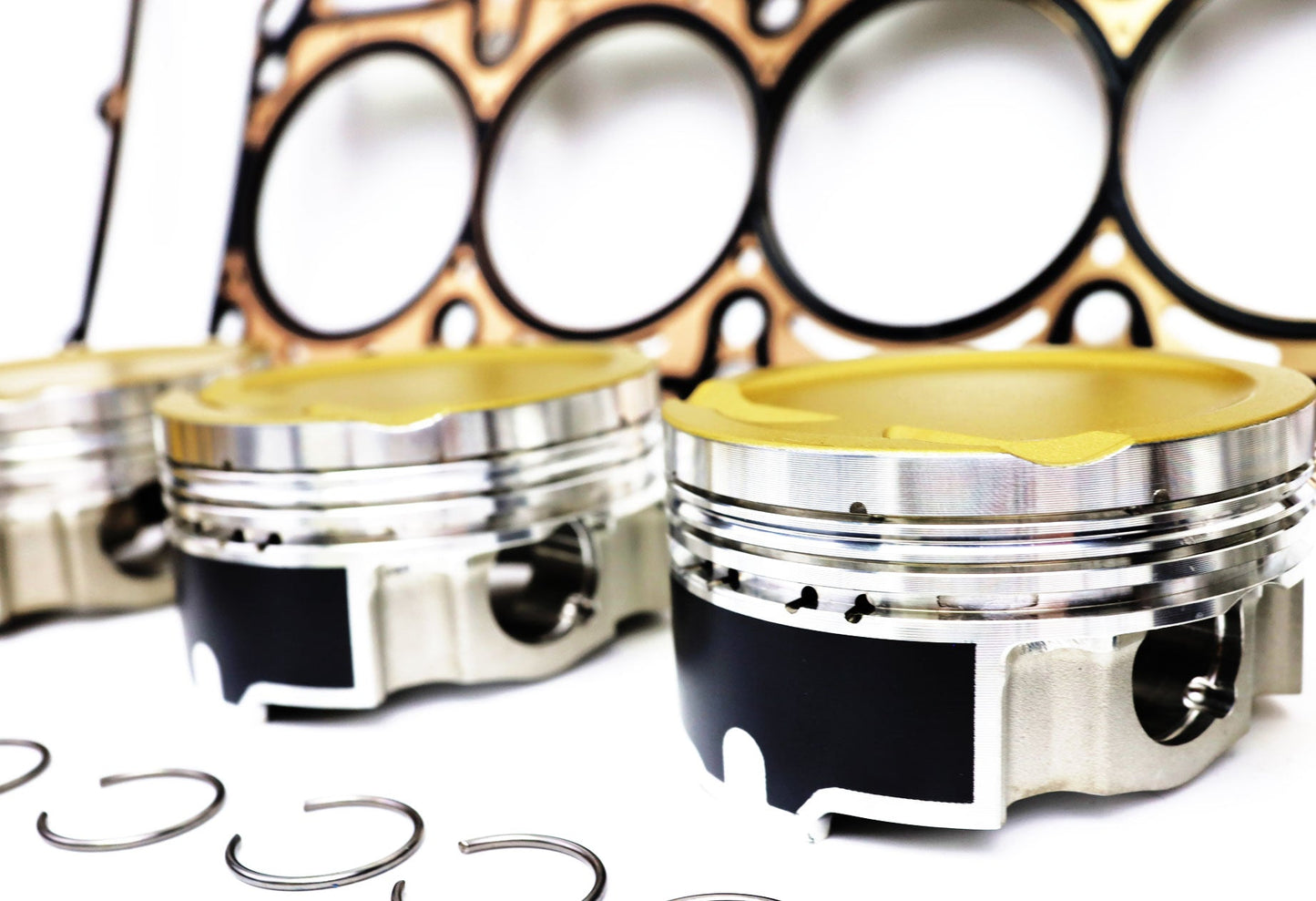

JE & BAR-TEK® Ultimate Kit Forged Piston & Steel Connecting Rod - 2.5L TFSI DAZA / DNWA / DNWC
Our kit is of course not only visually eye-catching, but is also designed for extreme performance. Herewith your 2.5L TFSI is worry-free steadfast up to 1000 HP! This is due to the fact that we pack only the best components in our Ultimate Kit and these are also optimally matched to each other.
The JE Pistons-piston in this kit are extra coated for extreme performance and come with the High Boost piston pins. At the same time, they are still quite light. This combo is of course perfect for motorsports. With the piston comes everything you need for installation: bolts, rings and clips.
Also extremely light and at the same time very strong are our special titanium-nitrided steel connecting rods. Thanks to their surface, they can withstand high pressure loads without any problems. They are machined from solid and have an additional bore for better piston pin lubrication (Rifle Drilled). They also come with everything you need for mounting: the matching ARP2000 expansion bolts and mounting paste.
These two parts are the stars in the kit and are rounded out by high performance bolts, racing lead bearings and co. As I said, more simply does not go!
Features of the high-performance piston:
- Extremely lightweight due to special alloy
- Reinforced for maximum performance
- for standard bore 82.50mm or 83.00mm bore
- 22mm piston pin
- Installation and bore dimensions are enclosed
Features of the Titanium-Nitrided H-shank-conrod:
- Titanium nitrided
- High strength machined from solid
- Suitable for extreme power increases of 1000 HP
- Extremely light and very stable
- Magnaflux inspected
- 5 pieces per set
- Dimensions: 144 x 22 mm
- Weight per conrod with screws only about 600 grams
- With oil riser hole for piston pin lubrication (Rifle Drilled)
- Precisely angled and tested in our factory
- With 10x ARP 2000 expansion screws 3/8"
Features of ACL connecting rod bearings:
- Racing bearing, ACL Race
- Extra coated
- Extra bore for the piston pin
Features of APR stud bolt for the block and head:
- A MUST for all engines that run with increased charge pressure!
- The most important bolts from the world market leader ARP.
- The stud bolts are made of 8740 chromoly steel and have rounded threads.
- Up to 40% stronger stretch steel than stock bolts.
- All ARP high performance bolt kits include ARP paste.
- Additional ARP bolts for the bearing blocks
Features of the Cometic MLS head gasket
- Multi-layer metal head gasket
- Stock thickness for optimum compression of 9.5:1
Suitable for all 2.5L TFSI EA855Evo engines as installed in the RS3 8V and TTRS 8S and many more.
Fits all 2.5L TFSI EA855 EVO engines as installed in the 8V2 RS3 / 8S TTRS (DAZA, DNWA, DNWC)
Available on back-order only. Lead time is 7-14 days from order.
