2.0L TSI EA888 Forged Piston & Steel Con-Rod Set by MAHLE & BAR-TEK®

This is the complete set for your 2.0L TSI engine of the third generation: It consists of MAHLE forged pistons, high-strength BAR-TEK^® H-beam con-rods and ACL con-rod bearings. This combination turns your engine into a stable turbo engine, and you can achieve performances of over 450 hp without a problem. Since the components are in perfect harmony with one another, you don’t have to search so much. You also save money with the set!

Thanks to the MAHLE pistons with a special alloy, reduced movement is possible and thus a quiet engine running (even in the cold start-up phase). The ring zones of these pistons ensure a reduced blow-by, and you get the maximum performance out of your engine. Our H-beam steel con-rods have been milled from a solid block, which makes them very stable and extremely lightweight. In other words, they are the ideal con-rods for extreme increases in performance.

This set fits perfectly in your 2.0L TSI EA888 2.0L TSI chain-driven engine (as installed in the Golf MK7 GTI, Audi S3, TT, TT S and suchlike).

 Piston features:

• Reduced movement possible thanks to a special alloy
• Quiet engine running even in the cold start-up phase
• High-performance piston pins
• Ideal compression ratio (9.6:1) and optimum piston shape for TSI Gen 3 engines
• For 2.0L TSI with EA8883 engine type of the new generation 3
• For 144 x 21 mm con-rods
• Also for 82.50-mm standard bore
• Reduced blow-by through special ring zones
• Anti-friction graphite coating
• Mahle high-performance piston rings
• Plug & play installation possible

Features of the H-beam con-rods:

• high-strength and milled from a solid block
• suitable for extreme increases in performance
• extremely lightweight and very stable
• Magnaflux inspected
• 4 units per set

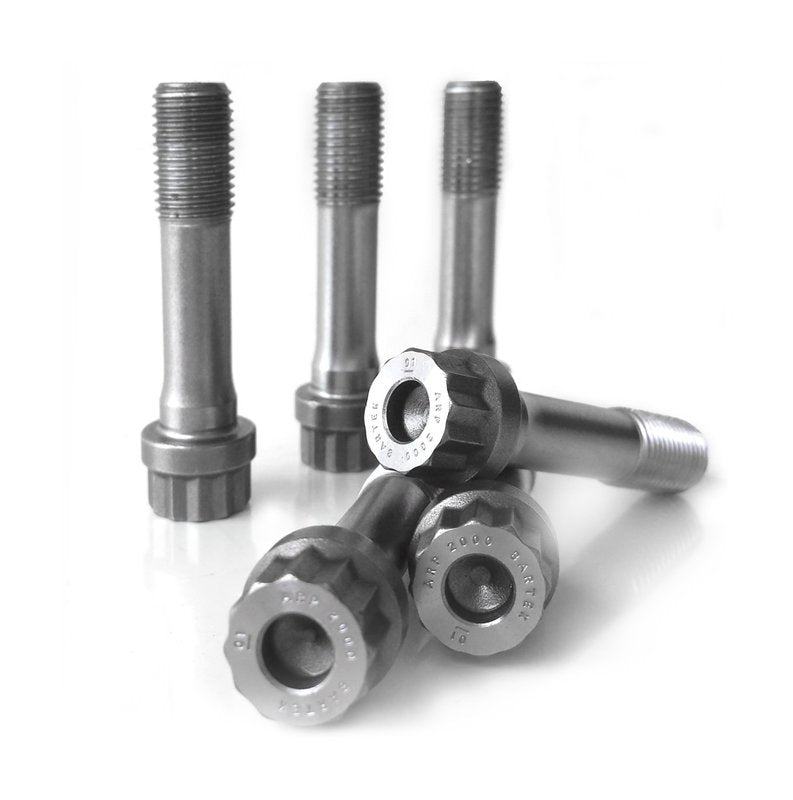

• With ARP 2000 3/8” stretch bolts
• 21mm pistons pins
• ARP fitting grease
• Weight per con-rod with bolts only 565 grams
• Made in U.S.A.

Features of ACL con-rod bearings:

• Race bearings
• Coated
• Extra bore for piston pin

Suitable for:

• VW Golf MK7 GTI 2.0L TSI (EA888 Gen 3)
• VW Golf MK7 GTI R 2.0L TSI (EA888 Gen 3)
• Audi A3 8V 2.0L TSI (EA888 Gen 3)
• Audi S3 8V 2.0L TSI (EA888 Gen 3)
• Audi TT 8S 2.0L TSI (EA888 Gen 3)
• Audi TTS 8S 2.0L TSI (EA888 Gen 3)
• Seat Leon 5F 2.0L TSI (EA888 Gen 3)

  Available on back order. Call or Email to confirm availability prior to purchase.
