JE & BAR-TEK® Ultimate Kit Forged Piston & Steel Connecting Rod - 2.5L TFSI CEPA, CEPB, CZG

Perfectly tuned: 2.5L TFSI ULTIMATE Kit stands strong for up to 1000 HP power!

Whenever you think more is not possible, think of this kit. Because here we have once again outdone ourselves. The ULTIMATE Kit is not called that for nothing! Here you have everything you need for the best performance with your 5 cylinder: A perfectly matched combination of forged pistons, connecting rods, connecting rod screws, connecting rod bearings, head gasket and stud bolt.

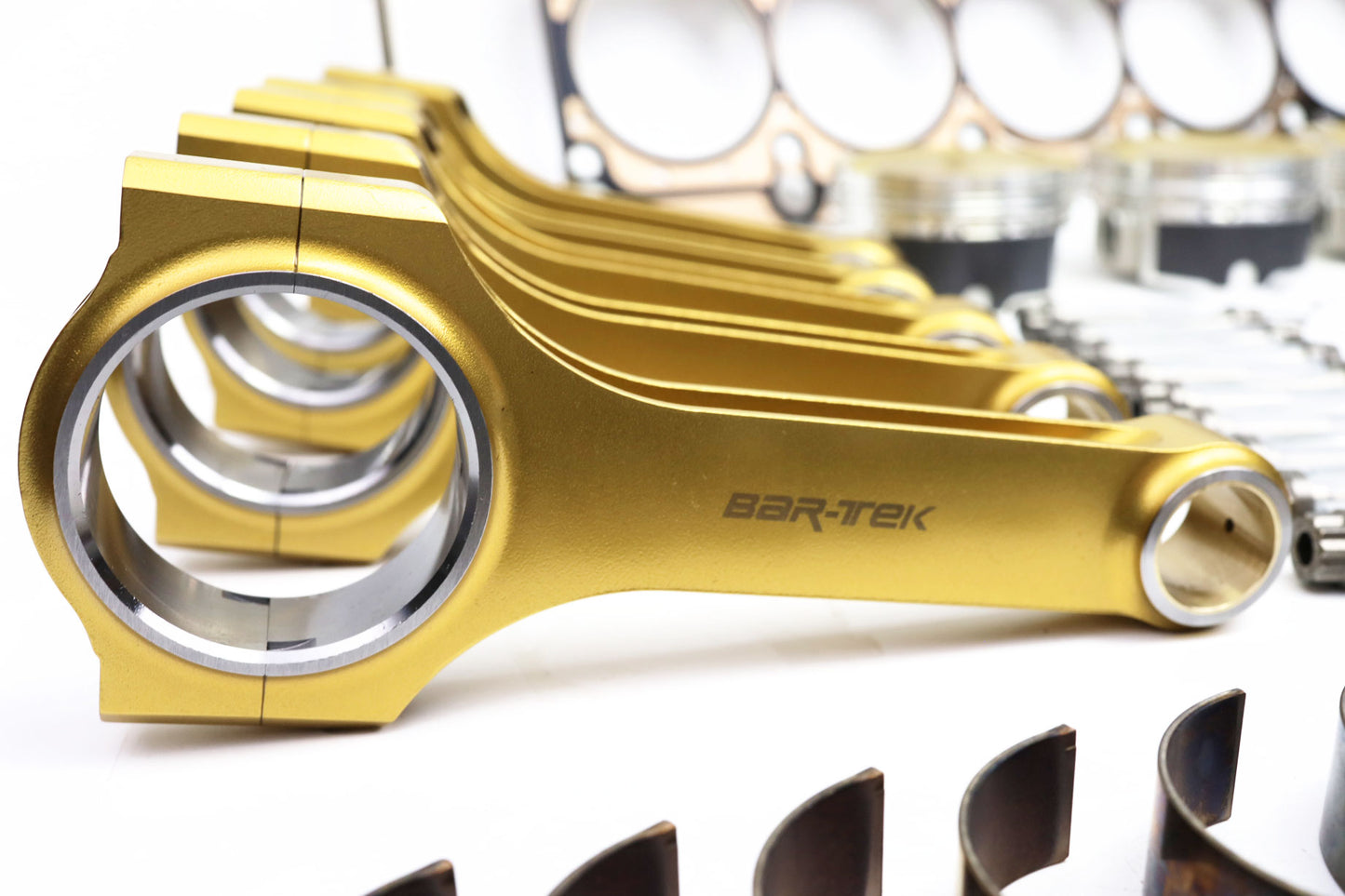

Just visually, this set can do it all: Our BAR-TEK® H-shank steel connecting rods are titanium riveted, which is why they shine gold. Matching high performance pistons from JE Pistons are available as Ultra Series. All other parts are also of the highest quality: ARP connecting rod bolts, connecting rod bearings from ACL, MLS head gasket from Cometic and ARP stud bolt for the cylinder head.

That's really all you need. These components not only harmonize perfectly with each other, but you also save money in the set compared to buying them individually!

Features of the high-performance piston:

• Extremely lightweight due to special alloy
• Reinforced for maximum performance
• Available for bore size 82.50mm or 83.0mm
• 21 mm piston pin
• Installation and bore dimensions included

Features of the titanium-nitrided H-shank-conrod:

• Titanium-nitrided
• High strength milled from solid
• Suitable for extreme power increases of 1000 HP
• Extremely light and very stable
• Magnaflux inspected
• 5 pieces per set
• Dimensions: 144 x 21 mm
• Weight per conrod with screws only about 600 grams
• With oil riser hole for piston pin lubrication (Rifle Drilled)
• Precisely angled and tested in our factory
• With 10x ARP 2000 expansion screws 3/8"

Features of ACL connecting rod bearings:

• Racing bearing, ACL Race
• Extra coated
• Extra bore for the piston pin

Features of APR stud bolt for the block and head:

• A MUST for all engines that run with increased charge pressure!
• The most important bolts from the world market leader ARP.
• The stud bolt are made of 8740 chromoly steel and have rounded threads.
• Up to 40% stronger stretch steel than stock bolts.
• All ARP high performance bolt kits include ARP paste.
• Additional ARP bolts for the bearing blocks

Features of the Cometic MLS head gasket

• Multi-layer metal head gasket
• Stock thickness for optimum compression of 9.5:1

Fits all 2.5L TFSI EA855 engines as installed in the 8P RS3 / 8V RS3 / 8J TTRS (CEPA, CEPB, CZG)

 Available on back-order only.
