2.0L TFSI EA113 Oil Catchtank Kit with Billet Valve Cover with ECE

The Ultimate Kit for your TFSI. Our billet valve cover in combination with our Catch tank Kit. Suitable for all EA113 2.0L TFSI engines, such as in the Golf 5 GTI, Audi S3, TTS and many more.

A better solution to minimize carbonization of the inlet valves does not exist. The kit gives your engine bay the perfect look and the best thing, with TUV.

Too much clogged intake valves can lead to a major engine damage due to valve breakage!

Further disadvantages of coking:

• Un-even idling
• Power loss
• Decrease in throttle response

The coking at the intake valves and in the intake duct is caused by long-life oils, inferior fuel and frequent short-distance operation.
In general, the coking can not be prevented, only delay. That's why we recommend installing our Oil Catch tank Kit to fight the dirty gases.

The system is completely closed. With the kit, the crankcase and block vent oil vapors are directed into the catch tank. All gases go into the catch tank, are filtered and returned via a special hose to the intake, upstream of the turbocharger (only for K03 and K04 turbochargers).

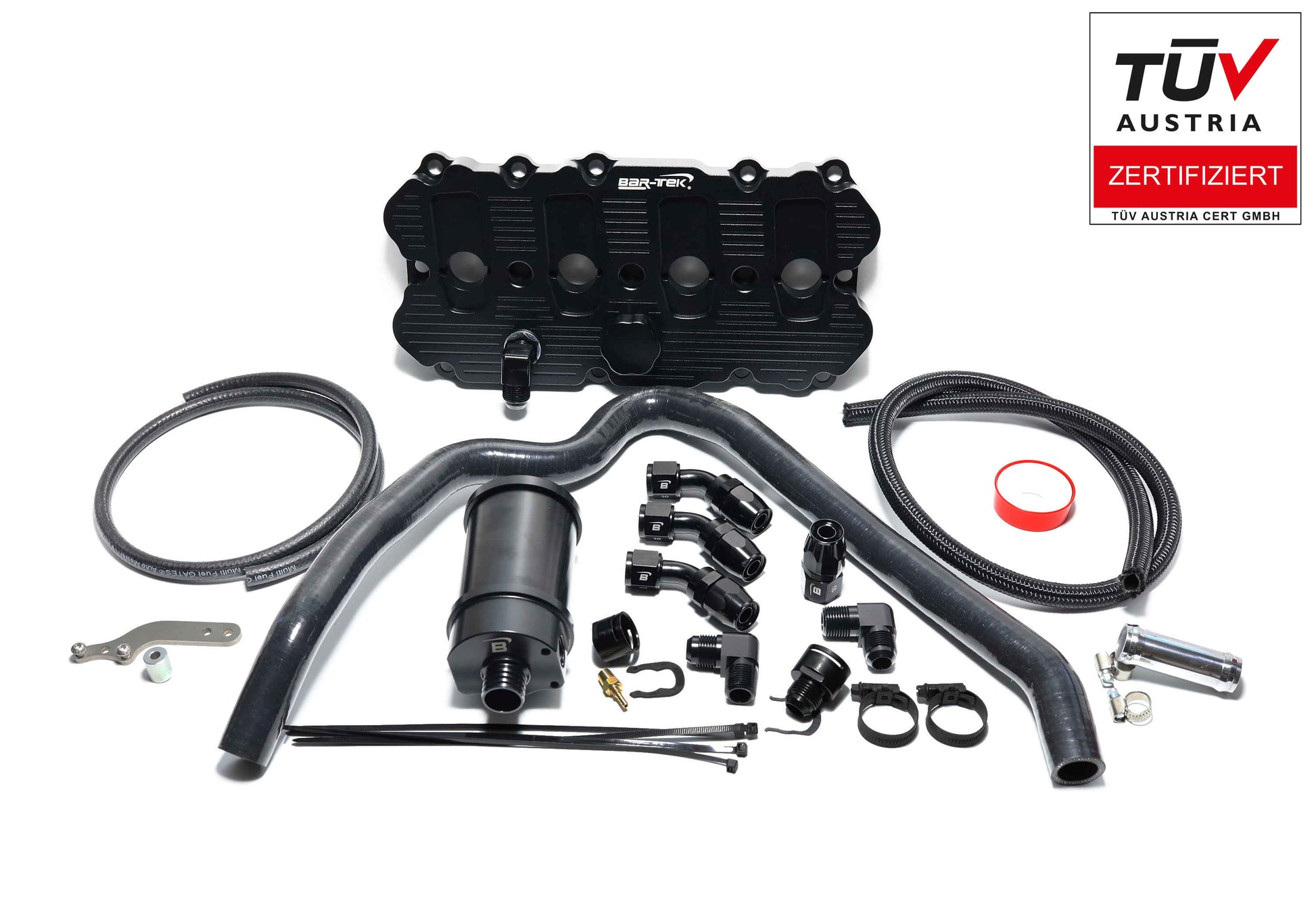

The kit consists of:

• 1x Billet Valve cover (Black)
• 1x oil catch tank open, size: 140mm x 80mm
• 1x holder for the Catch tank
• 1x 2 meter dash 10 lines with nylon fabric (especially oil resistant)
• 2x 45 ° Dash 10 fitting
• 2x 90 ° Dash 10 fitting
• 2x NPT on Dash 10 Adapter 90 ° for the Catch tank
• 1x adapter boost gauge for the intake manifold
• 1x adapter engine breather turbocharger
• 1x adapter Dash 10 engine breather block
• 1x hose re-circulation hose turbocharger
• 2x hose clamps
• 1x roll of Teflon tape

Note for use in cold climates:
The Catch tank is designed primarily for a warm climate.
In winter at temperatures below 0 ° C, the condensation that forms in the system can freeze. This would result in increased crankcase pressure, which can lead to engine damage. We recommend checking and draining the Catch tank system more frequently during the winter, or removing it completely for the cold period.

Fitment for:

Audi A3 8P 2005-2013 2.0L TFSI (EA113) AXX / BWA
Audi S3 8P 2006-2013 2.0L TFSI (EA113) BHZ / BZC / CDLA
Audi A4 B7 (Type 8E) 2005-2008 2.0L TFSI (EA113) BGB / BPG / BUL / BWE
Audi TT / TTS / TT 8J 2006-2013 2.0L TFSI (EA113) BPY / BWA / CDLB
VW Golf V 2005-2008 2.0L TFSI (EA113) AXX / BWA
VW Golf VI R 2010-2013 2.0L TFSI (EA113) CDLF / CDLG
VW Scirocco R III 2008-2015 2.0L TSI R (EA113) CDLA

Available on back-order. Ships in 5-7 days.
