JE High Performance Pistons and our BAR-TEK® conrod . An ideal set for your 2.5L TFSI engines.

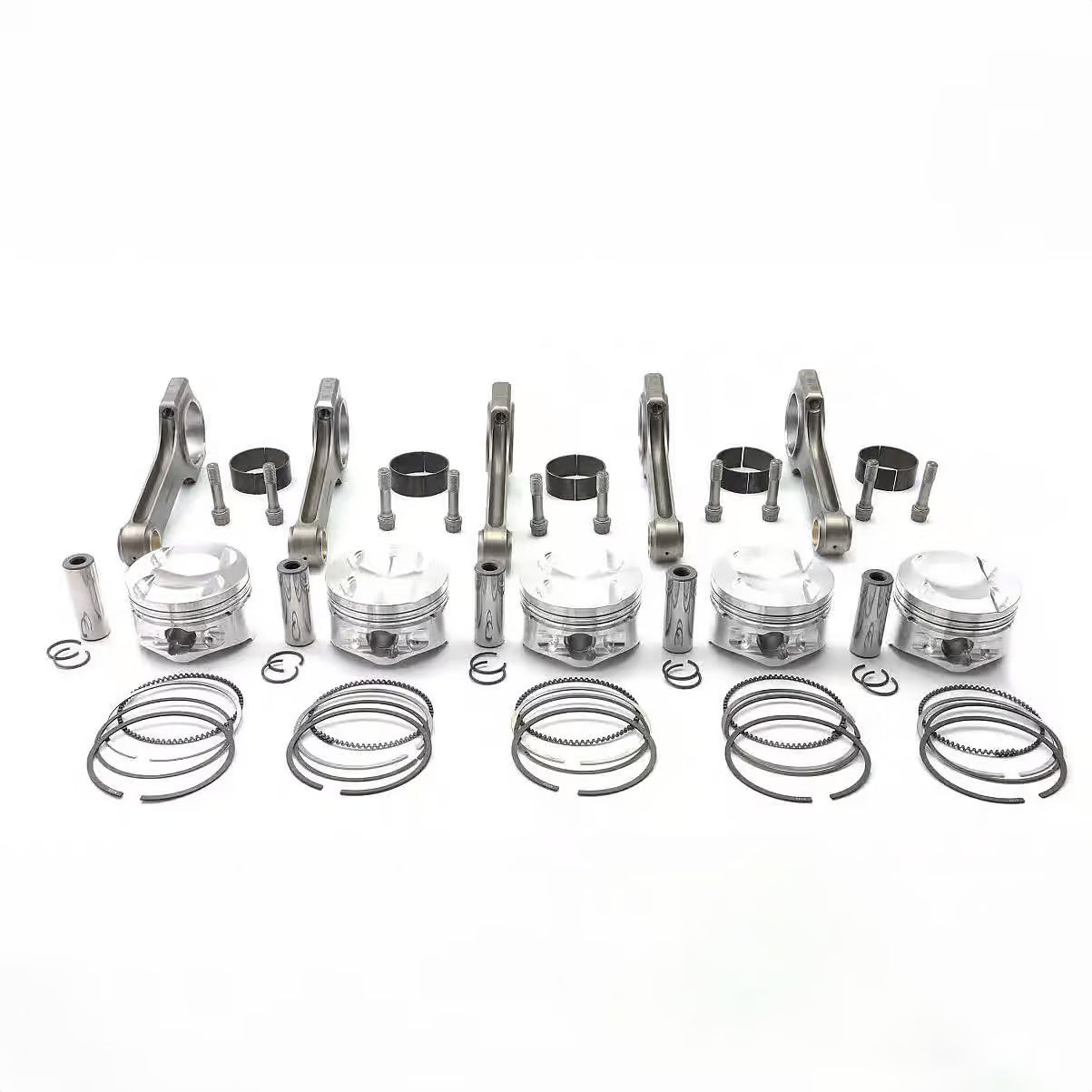

In this set you have the perfect combination of forged pistons, H-Shaft steel connecting rods, APR connecting rod bolts and ACL connecting rod bearings for your 2.5L TFSI. All components work in perfect harmony with each other, so you don't have to search anymore and you even save money!
The JE Pistons piston are reinforcedfor extreme performance and at the same time quite light. This combo is of course perfect for motorsports. With the piston comes everything you need for installation: bolts, rings and clips.
Also extremely light and at the same time very stable are our H-Beam conrods. Their design allows them to withstand high pressure loads without any problems. They are machined from solid and rifle drilled for better piston pin lubrication. They also come with everything you need for installation: the matching ARP expansion bolts and installation paste.
Features:
- Extremely light due to special alloy
- Reinforced for maximum performance
- Also for stock bore 82,50 mm or 83.00mm
- 21 mm piston pin
- CR 9.6:1
- Complete set incl. piston pin, rings and clips
- Installation and drilling dimensions included
Features H-Beam conrods:
- Original BAR-TEK
- high strength machined from solid
- suitable for extreme power increases
- extremely light and very stable
- Magnaflux inspected
- 5 pieces per set
- With ARP 2000 expansion screws 3/8"
- ARP assembly paste
- With additional bore for piston pin lubrication
Features ACL Connecting Rod Bearings:
- Standard Size Racing bearings (Email for oversize bearings)
- Coated
- Extra bore for piston pin
All piston are manufactured in state of the art 5-axis CNC facilities.
100% CNC-milled from high quality forged aluminum, specially designed for street and drag race engines with very high performance.
All piston are tested to the highest standards. They are internally steam blasted and shot peened to not only relieve stress in the material, but also to reveal the smallest imperfections that could cause the piston to not perform as desired. All piston are also heat treated.
The compression stated is in conjunction with a 0.90mm cylinder head gasket.
Fitment For: CEPA / CZGB / CZGA / CTSA / CEPB
Available on back order!
