Integrated Engineering - 2.0T FSI/TSI/TFSI INTAKE MANIFOLD (EA888 GEN1/GEN2)

The Integrated Engineering 2.0T FSI/TSI/TFSI intake manifold was carefully designed to provide an effective power increase across the entire rpm range with no loss in low-end power or spool time, with the ability to be used on any turbo setup, including the stock turbo. We have incorporated several motorsport features into this intake manifold, making it outperform the factory unit, as well as other aftermarket manifolds available.

 Additional Features:
-Tuned for excellent power and torque gains throughout the entire rpm range
-No loss in spool time
-O ring seals on head flange, throttle body, and velocity stack cover (no liquid gasket or RTV required)
-No wiring extension required for intake air temp sensor
-Direct replacement for factory manifold
-Thick wall cast construction for durability
-Choice of black, red, or blue anodized velocity stack cover
-Black powdercoat finish
-Includes required fasteners and seals, but vehicle-specific install kits sold separately
-100% engineered, tested, designed, cast, and machined in USA

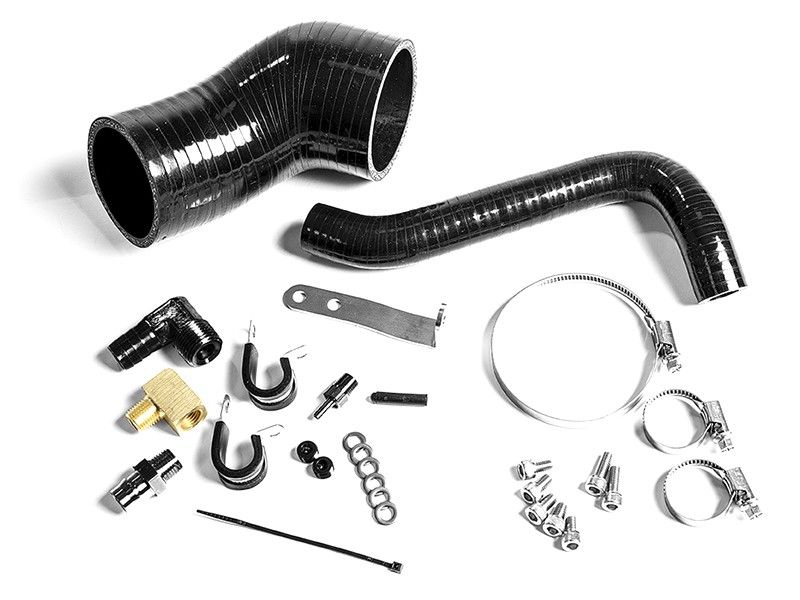

Kit Includes Install kit for 2.0TSI (VW Golf 6 GTI / Audi A3 2.0TFSI - Chain driven Engines)

Designed specifically for each individual application, IE intake manifold install kits are complete with all hardware necessary to install your new IE 2.0T cast intake manifold. This kit is designed for the MK6 TSI engines (chain-drive only, not Golf R), including all brackets to fasten OEM lines and components, as well as couplers to plumb the valve cover breather, throttle body pipe, and vacuum connections. We also include a barbed fitting to be used for plumbing a boost gauge, as well as a plug to block off the port if not needed.

This is the necessary kit to complete the installation of the IE intake manifold on your MK5/MK6 2.0T TSI.  Only sold complete with all parts.

 Includes:
-4 ply black silicone throttle body hose with clamps
-4 ply black silicone breather hose with clamps
-Coolant pipe bracket with hardware
-Dipstick mounting hardware
-Diverter valve mounting hardware
-IAT sensor hardware
-Fuel line mount hardware
-Barbed fittings for vacuum connections
-Vacuum hose with clamps for OEM vacuum connections
-EVAP adapter fitting

Applications:
Audi A3/MK6 2.0T TSI (chain-drive only)

 Available on Back-order. Usually Ships in 5-9 days
