Complete Forged Engine Package for High-Performance EA888 Gen 3 Builds
Building a forged VW/Audi 2.0 TSI EA888 Gen 3 engine?
The Parts Cartel has combined the critical forged engine components into one comprehensive package, saving you the time and complexity of sourcing individual components separately.
One order. One shipment. Premium matched components for your forged EA888 Gen 3 build.
This 83.00mm oversize-bore package combines JE forged pistons, Bar-Tek H-Beam connecting rods, race bearings and an extensive Elring gasket and seal package to provide the core components required for a serious EA888 Gen 3 engine build.
What's Included
JE High Performance Forged Pistons – 83.00mm
- 83.00mm oversize bore
- High-performance forged construction
- Lightweight performance design
- Reinforced for high-performance applications
- 21mm piston pin
- Complete set including piston pins, rings and clips
- Installation and bore specifications included
Important: This is the 83.00mm oversize version and requires the engine block to be professionally machined to the appropriate bore specification.
A separate 82.50mm standard-bore version of the forged rebuild package is available.
Bar-Tek H-Beam Forged Connecting Rods
- High-strength H-Beam construction
- Manufactured from solid material
- 144mm x 21mm specification
- Four connecting rods per set
- ARP 2000 3/8" rod bolts
- ARP assembly lubricant included
- Approximately 599g per rod including bolts
- Rifle-drilled piston-pin lubrication
- Magnaflux inspected
The connecting rods are specified by the manufacturer for extreme-performance applications of up to approximately 1,000 hp, subject to the complete engine specification, tuning, fuel system, turbocharger and supporting hardware.
ACL or King Race Connecting-Rod Bearings
- Performance race-bearing construction in Standard size
- Designed for high-performance engine builds
- Supplied as a complete connecting-rod bearing set
Elring Gasket & Seal Package
A comprehensive OE-quality Elring gasket and seal package containing the replaceable gaskets and seals required during the engine rebuild.
Also includes:
- Replacement OE cylinder-head bolt set
- Elring EL-Liq 73 anaerobic sealant – 50ml
Optional Rebuild Add-Ons
Build the package around the requirements of your engine rebuild by selecting optional components including:
-
Complete engine timing kit – chains, guides, rails and tensioners
-

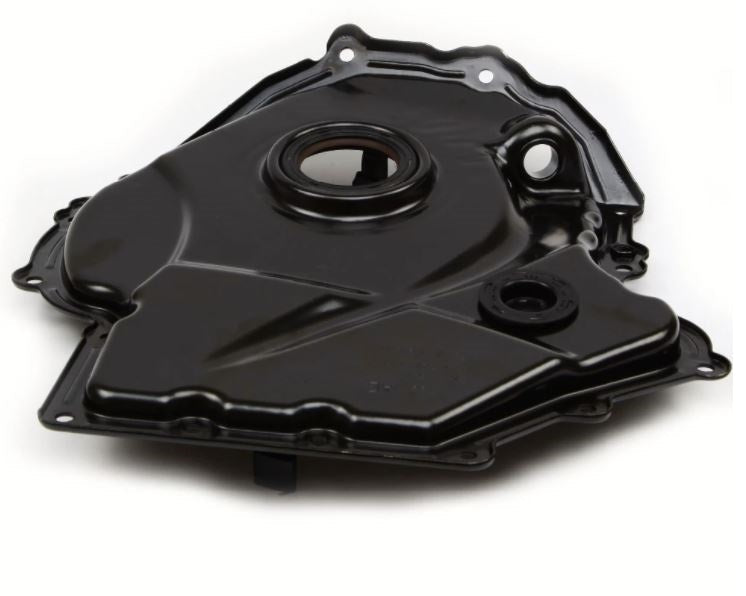

Lower timing cover with integrated front crankshaft seal
- Metal oil sump
Multiple package combinations are available, allowing these components to be ordered together with the forged rebuild kit.
Vehicle & Engine Compatibility
Designed for selected 2.0 TSI / TFSI EA888 Gen 3 engines, including applications found in:
- VW Golf 7 / 7.5 GTI
- VW Golf 7 / 7.5 Golf R
- Audi A3 8V 2.0 TFSI
- Audi S3 8V
- Audi TT / TTS 8S 2.0 TFSI
- SEAT Leon Cupra 5F
- Selected Škoda Octavia RS 2.0 TSI applications
Common EA888 Gen 3 engine-code families include CHH-, CJX-, CYF-, DJH and related Gen 3 variants, depending on vehicle, model year and market.
Important Fitment Information
This package uses 83.00mm oversize JE forged pistons.
The relevant EA888 Gen 3 engines use an 82.50mm factory bore, so this kit is intended for an engine rebuild where the block will be professionally machined to the required 83.00mm bore specification.
This is not the standard-bore version of the rebuild kit.
For engines remaining at the original bore specification, see our 82.50mm Standard Bore EA888 Gen 3 Forged Rebuild Package.
Because VW/Audi engine codes and internal specifications can vary between markets and production years, we strongly recommend confirming your engine code and required piston specification before ordering.
If you're unsure, contact The Parts Cartel with your vehicle details and engine code and we can assist with confirming the correct rebuild package.
Why Buy the Complete Package?
Building a forged engine normally means sourcing pistons, connecting rods, bearings, gaskets, seals and supporting components individually.
This package simplifies the process by combining premium components selected specifically for an EA888 Gen 3 forged engine build.
One Order. One Shipment. One Complete Build Package.
Ideal for:
- High-performance EA888 Gen 3 engine builds
- Forged engine rebuilds / Preventative maintenance
- Big-turbo project / High-boost applications
- Performance and motorsport purposed builds
- Engines requiring an 83.00mm oversize bore during rebuilding
Recommended Supporting Hardware
For higher-performance builds, consider pairing the forged rebuild package with:
- Bar-Tek MQB Performance Coil Packs
- ARP Cylinder Head Stud Kit
- NGK RS3/RS7 Spark Plug Set
Shipping
Direct shipping available.
Free delivery within South Africa.
